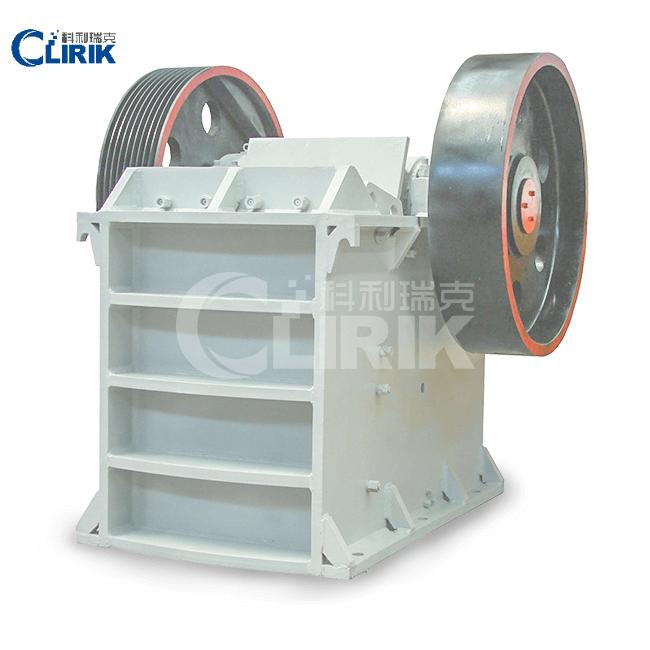

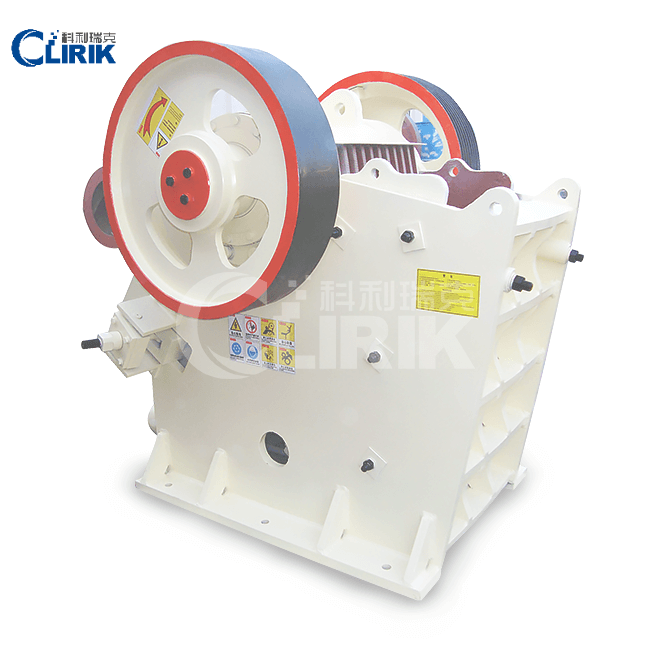

PE Series Jaw Crusher

PE Series Jaw Crusher

Description

Product Overview

Jaw Crusher

PE Jaw Crusher

Output Size: 65-160mm

Feed size.: 480mm

Capacity: 1-140t/h

Use Range : Calcium carbonate、Kaolin、 Talcum、Wollastonite、 Mica、White carbon black、 Talic、Limestone、Graphite…

Application : Metallurgy、 Mining、Chemical Industry、 Cement、Coal Stone、 Construction、Sand Making、Refractory Materials …

Product Parameter

Model PE 150*250 PE 200*350 PE 250*400 PE 400*600 PE 500*750 PE 600*900
FeedOpening Szie(mm) 150X250 200X350 250×400 400×600 500×750 600×900
Feeding Size (mm) 125 125 210 350 425 480
Output Open Range (mm) 10–40 15-40 20-60 40-100 50-100 60-160
Capacity (t/h) 1-5 5-16 5-20 15-60 40-100 60-140
Powder (kw) 5.5-7.5 7.5-11 15-18.5 30-37 45-55 55-75
Dimension L * W * H (mm) 922 × 745 × 933 1056*1142*1220 1430*1310*1340 1700*1732*1653 2035*1921*2000 2290*2206*2370

Product Introduction

PE Series Jaw Crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials, and ceramics. It is suitable to crush hard and soft ores with compressive strength of less than 320 MPa. This machine can break materials into medium size and fine size.

Working Principle

PE Series Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part, and spring.

The movable jaw goes upward and downward through the eccentric shaft when the belt and belt wheel are driven by the motor. The angle between the movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closer to the fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.

When the movable jaw goes downward, the angle between the movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves a fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which in turn, realizes the goal of mass production.

Product Advantage


FEATURES OF PE SERIES JAW CRUSHER
:

1 Low noise and less dust.

2 The crushing ratio is large, and the product size is uniform.

3 The structure is simple, the work is reliable, and the operating cost is low.

4 The lubrication system is safe and reliable, the replacement of parts is convenient, and the equipment maintenance is simple.

5 The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output.

6 Equipment energy saving: single machine energy saving is 15%-30%, system energy saving is more than doubled.

7 The adjustment range of the discharge opening is large, which can meet the requirements of different users.

Our Other Equipment


Company Profile

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. Our company has already formed a full set of modern production line, equipped with intelligent,standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

Our Service


1.Clirik will recommend suitable production lines and grinding equipment to you according to your site.

2.Clirik provides third party inspection to ensure the quality of your grinding equipment.

3. Clirik provides you with online installation and use videos.


4. Clirik will provide you with technicians to install and debug the grinding equipment.


5. Clirik trains you the technicians who use and maintain the grinding equipment.


6. Clirik provides you with a one-year warranty and lifetime service for the grinding equipment.

FAQ

Because of different kinds of PE series Jaw Crusher , so our PE series Jaw Crusher has different prices, I need to ask you some details for sending you the more suitable quotation:



1. Which kind of material you are going to grinding?
(Dolomite; Calcite; Quartz; Basalt; Barite; Feldspar ; Gravel; Bentonite; Gypsum; Granite; Coal; Slag;     Pebble; Other)



2. What’s the production capacity you want? How many tons or cubic meters per hour?
( > 100 TPH > 50 TPH > 30 TPH > 10 TPH > 1 TPH < 1 TPH)


3. What’s the granularity of the final products you need?
(in milimeter, micron or mesh)



4. What’s the max input size of the material?
(In inch,centimeter or milimeter)

We will give you factory price with full specification,so please leave us an inquiry to know more details  about price, packaging shipping and discount.
