Cabinet Hammer Crusher

Cabinet Hammer Crusher

Description

Producte Overview Of Cabinet Hammer Crusher

Cabinet Hammer Crusher (square box crusher) is a type of crushing equipment. cabinet hammer crusher is primarily composed of frame, crushing plate, lining plate, plate hammer and other components. It is suitable for mineral materials with compressive strength of 300Mpa and humidity of less than 30%. ​Commonly used in mining, smelting, building materials, highway and chemical industry and many other fields.

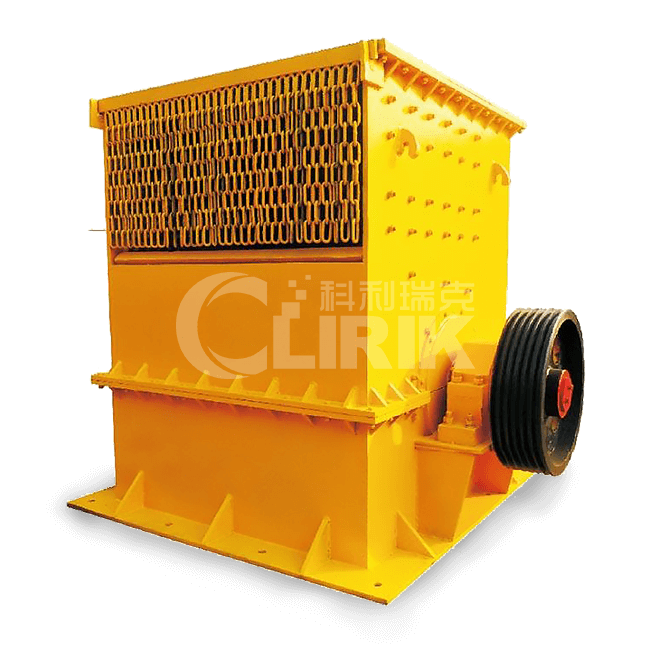

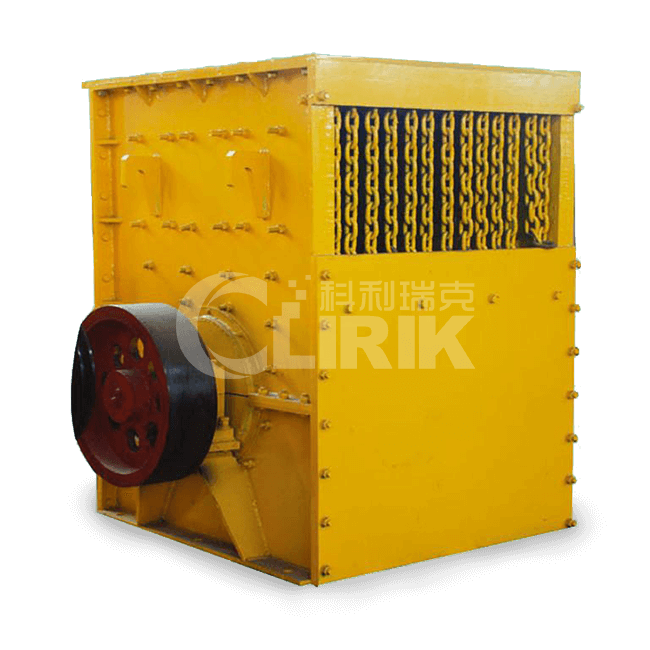

Cabinet Hammer Crusher

Cabinet Hammer Crusher

Capacity: 30-160t/h

Max feeding size: 800mm

Processing ability: 30-160t/h

Range of application: quartz, feldspar, mica, calcite, gypsum, fluorite, limestone, soil, clay, marble, granite, pebble, coal, slag, iron ore, copper ore, manganeseore, refractory material, glass…

Contact Us↗

Product Parameter Of Cabinet Hammer Crusher

Model PC600 PC800 PC1000 PC1200
Rotor speed(r.p.mm) 600-800 650-750 650-750 600-750
Max feeding size(mm) 550 780 780 800
Finished particle size(mm) ≦50 ≦50 ≦50 ≦50
capacity (t/h) 30-50 40-80 50-100 100-160
Powder(KW) 40-55 75-90 90-110 110-132
Weight( kg) 4200 4800 6500 8300

Note: This specification is just referencing, any changes are subject to the products.

Working Principle Of Cabinet Hammer Crusher

Cabinet Hammer Crusher is mainly composed of rack, crushing plate, lining plate, plate hammer and other parts, when replacing parts, only need to open the shell behind the crusher, less wearing parts, strong interchangeability.

Cabinet Hammer Crusher is principally based on motor, through the motor belt pulley, triangle belt and groove wheel to drive the wheel high-speed operation. The material directly enters the high-speed rotating roller from the top of the machine. In the high-speed impact and high-density crushing, after the stones clash with each other, and in the vortex motion formed between the turntable and the casing, they collide with each other, rub, and crush for many times until they are crushed into the required particle size. When the particle size of the crushed material is smaller than the gap between the sieve plates, it will be discharged from the lower part of the machine.

Cabinet-Crusher-Working-Principle
Cabinet-Crusher-Working-Principle

Product Advantage Of Cabinet Hammer Crusher

Cabinet Hammer Crusher application
  • Cabinet Hammer Crusher Feed size is massive, crushing ratio is high, particle size is constant.
  • ​Cabinet Hammer Crusher Flexible size of finished product, high production efficiency.
  • Cabinet Hammer Crusher Can handle high humidity materials (humidity less than 30%), decrease machine clogging.
  • The box body is suitable for soft materials, also suitable for hardness (compressive strength 300Mpa) materials.
  • ​Sturdy hammer head, rotary cabinet body, easy maintenance.
    6, a coarse, intermediate reduction, simplify the sand making process.
