Ball Mill
Description

Product Description Of Ball Mill

The ball mill is the key equipment for crushing the material after it is crushed. This type of grinding machine is to puts a specified number of steel balls in its barrel as a grinding medium. The Ball mill is composed of a feeding department, discharging department, rotary department, transmission department (reducer, small transmission gear, motor, electric control) and other parts. A Ball mill has a simple structure, high reduction rate, high efficiency, etc.

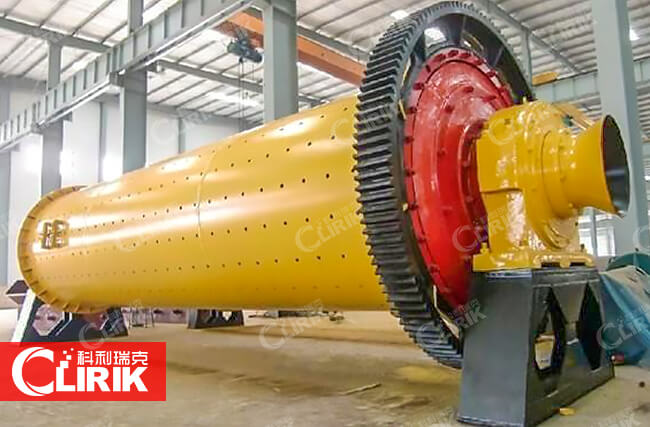

ball mill

Ball Mill

Processing ability: 3-300 t/h

Fineness: 0.074-0.4 mm

Max feeding size: ≤25mm

Range of application: All kinds of ore、Gold、Silver、Copper and iron ore dressing、 Cement、 Chemical fertilizer、Silicate Products、Refractory Materials、 Glass…

Application : Mining, Chemiscal, Transport and many other different areas.

Ball mill is generally used in cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation and glass ceramics and other production industries, dry or wet grinding of varied ores and other grindable materials. Ball mills are suitable for grinding varied ores and other materials. They are generally used in mineral processing, building materials and chemical industries.

Working Principle Of Ball Mill

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board, thus the grinding process is finished.

Product Advantage Of Ball Mill

1. Ball mill high production capacity and crushing ratio.

2. Low power consumption, uniform particle size.

3. Simple structure, easy to operate.

4. Low investment cost, big profit.

5. Perfect services, both before-sales servies and after-sales services.

Product Parameter Of Ball mill

Model

Rotary speed(r/min)

weight(t)

Input size(mm)

Discharge size(mm)

Capacity(t/h)

Motor power (kw)

Weight (t)

Ф900×1800

39

1.5

≤20

0.075-0.89

0.8-2

18.5

4.6

Ф900×1800

39

2.7

≤20

0.075-0.89

1-4

22

5.6

Ф1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

Ф1200×4500

32

5

≤25

0.074-0.4

1.6-5.8

55

13.8

Ф1500×3000

27

7.5

≤25

0.074-0.4

2-5

75

15.6

Ф1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

Ф1830×3000

25

11

≤25

0.074-0.4

4-10

130

28

Ф1830×6400

24

21

≤25

0.074-0.4

7-16

210

34

Ф1830×7000

24

23

≤25

0.074-0.4

8-18

245

36

Ф2100×3600

23

19

≤25

0.074-0.4

10-36

210

46

Ф2200×4500

21

27

≤25

0.074-0.4

12-23

280

48.5

Ф2200×6500

21

35

≤25

0.074-0.4

14-26

380

52.8

Ф2200×7000

21

35

≤25

0.074-0.4

15-28

380

54

Ф2200×7500

21

35

≤25

0.074-0.4

15-30

380

56

Ф2400×4500

21

30

≤25

0.074-0.4

18-45

320

65

Ф2400×8000

20

36

≤25

0.074-0.4

20-48

410

81

Ф2700×3600

21

39

≤25

0.074-0.4

19-75

400

83

Ф2700×4000

20

40

≤25

0.074-0.4

20-78

400

85

Ф2700×4500

20

48

≤25

0.074-0.4

22-85

430

89

Ф3200×4500

18

65

≤25

0.074-0.4

29-140

800

137

Ф3200×5400

18

81.6

≤25

0.074-0.4

30-180

800-1000

146

Ф3600×4500

17

88

≤25

0.074-0.4

35-210

1000

190

Ф3600×6000

17

117

≤25

0.074-0.4

38-240

1250-1500

220

Ф3600×8500

17

144

≤25

0.074-0.4

45-260

1800

260



Manufacturer Introduction Of Ball mill

Ball mill manufacturer Shanghai Cilirk Machinery Co., Ltd. is a company specializing in the production of accessories such as pulverizers, Raymond mills, crushers, etc.We have strong and professional technical and sale team. Customers’ satisfaction is our final and forever pursuing.

Our Company

Our compay located in PUDONG New district of Shanghai china as a professional enterprise, Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories.

Clirik R&D team
Clirik R&D team

Our Certificate

Our company has obtained a number of product patent certificates. The company attaches great importance to independent intellectual property development, independent intellectual property protection, and continuously expands the investment in product new technology research and development, and actively stimulates the innovation consciousness of research and development personnel.

 Product Certificate
Product Certificate

Our Other Products

FAQ

1.What is the raw material do you want to process?

2.What is the capacity per hour do you need?

3.What is the raw material input size?

4.What is the output size of your product?
