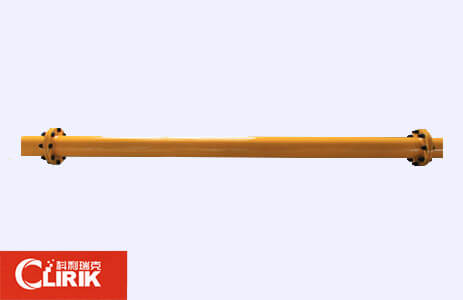

Air Conveying System

Air Conveying System

Description

Product Overview Of Air Conveying System

​An air conveying system is designed specifically for close distance and continuous transport. Transporting distances is generally horizontal distance≤ 300m, vertical distance 30m. It is suitable for conveying powder specific gravity ≤1.3, fineness≥60 mesh, moisture content≤5%, under the highest instantaneous temperature≤250℃working conditions, the maximum throughput is 60 t/h.

An air conveying system is with long life, low operation and maintenance costs, small size, easy control, widely used in mining, building materials, coal, chemical and other industries. It also can be used in the nesting conditions for single-point or multi-point requirements.

Product Parameter Of Air Conveying System

Model

ST-LXB-0.5

ST-LXB-2

ST-LXB-5

ST-LXB-10

ST-LXB-15

ST-LXB-20

ST-LXB-30

ST-LXB-40

ST-LXB-50

Capacity(t/h)

0.1~0.5

0.5~2

2~5

5~10

10~15

15~20

20~30

30~40

40~50

blast capacity

(m³/min)

1.0~3.0

8.0~12

10~15

12~18

14~23

18~30

20~38

35~50

40~65

Inlet pipe diameter

DN40/

DN50

DN100/

DN125

DN125/

DN150

DN125/

DN150

DN125/

DN150

DN150/

DN175

DN150/

DN200

DN200/

DN250

DN200/

DN300

velocity in pipe (m/s)

13~16

Pressure

(kpa)

≤78

Body material

 Cast iron, cast steel, stainless

Motor(kw)

0.5

1.5

2.2

2.2

2.2

3.0

3.0

3.0

4.0

Weight (kg)

650

770

960

1100

1100

1200

1300

1450

1600

Working Principle Of Air Conveying System

​The air delivery system uses the principle of gas-solid flow fluidization, jet technology, combined with differential pressure principle, to finish this working progress. Taking the electric rotary feeder as the feeding device, the material is evenly put into the mixing chamber. At the same time, the blower jet the high-speed air flow of materials into the acceleration chamber, the suspended flow into the conveying pipeline transport to in silos, according to the separation by the feed gas, powder falls under silo gases into the atmosphere, in order to achieve a powder material handling purposes.

Features Of Air Conveying System

  • Variable arrangement of the pipe makes the production craft process more reasonable.
  • The system is sealed and leads to few flying dust, it benefits environment protection.
  • Few movement parts, convenient maintenance, automatic control can be realized easily.​
  • ​The high efficiency of transportation reduces the cost of packing, loading and unloading.​
  • Make the material avoid being damped, polluted, damaged, and mixed with other materials, the quality of conveying is assured.​
  • Various operation processes can be realized meanwhile for the conveying, such as mixture, crush, grade, dryness cooling, and dust collection.
  • Send the material from couple place to one place and from one place to couple place, realize far distance operation
  • For the material with erratic chemical character, it can adopt inertia gas conveying.
