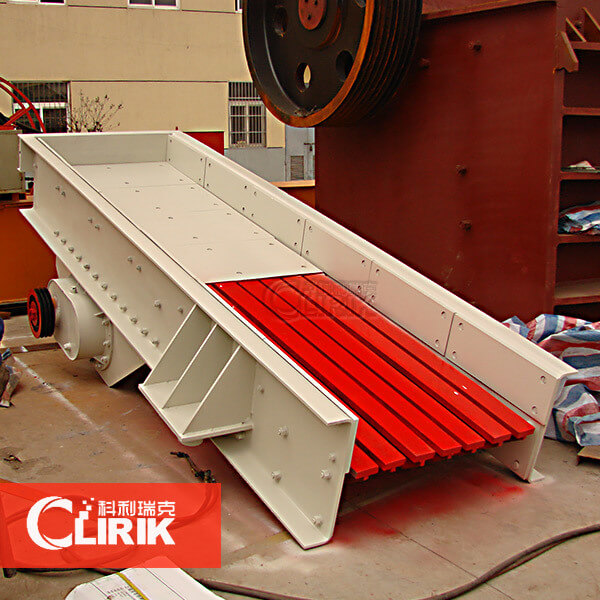

GZ Series Vibrating Feeder

GZ Series Vibrating Feeder

GZ Series Vibrating Feeder

Description

Product Overview Of GZ Series Vibrating Feeder

GZ series vibration feeder, also known as vibration feeder, refers to the massive, granular material from the storage bin uniform, timing, continuous transport to the receiving equipment.In the sand and stone production line can be continuous and uniform feeding of crushing machinery, and coarse screening of materials, widely used in metallurgy, coal mine, mineral processing, building materials, chemical, abrasive and other industries.

GZ Series Vibrating Feeder
GZ Series Vibrating Feeder

Product Parameter Of GZ Series Vibrating Feeder

Model

GZ1

GZ2

GZ3

GZ4

GZ5

Input capacity (t/h)

5

10

25

50

100

Max input size(mm)

50

60

70

100

150

Motor power (W)

60

150

200

450

650

Voltage(V)

220

Current(A)

≦1

≦2.8

≦3.8

≦7

≦10.6

Double-amplitude(mm)

1.75

Bottom clearance(mm)

1.9-2.2

Weight (kg)

73

155

225

460

656

Product Advantage Of GZ Series Vibrating Feeder

GZ Series Vibrating Feeder

Prevent clogging

Special grate design, can prevent the material blockage, and play a primary screening of the material, so as to improve the yield.

Low noise and good performance


Vibration motor is excitation vibration source, low noise and low power consumption, good regulating performance.

Low dust pollution rate


Closed fuselage can prevent dust pollution, good adjustment performance, no blanking phenomenon.

Adjustable fitting


Adjust the excitation force to change at any time and control the flow, convenient and stable adjustment, generally used for loose materials.

Working Principle Of GZ Series Vibrating Feeder

GZ Series vibrating feeder feeding process is the use of electromagnetic vibrator driven by feeding trough along the tilt direction periodic reciprocating motion, when the feeding machine vibration acceleration vertical component is greater than the gravitational acceleration.

The groove in the material will be thrown up, and carries on the jumping movement forward in accordance with the parabolic trajectory, tossed up and down at 1/5 seconds.

every vibration of material manger It is thrown forward and jumps once, so that the tank vibrates at a frequency of 3000 times per minute, and the material is thrown forward and jumps accordingly, so that the material moves forward uniformly and continuously to realize feeding.

GZ Series Vibrating Feeder
GZ Series Vibrating Feeder

Introduction Manufacturer of GZ Series Vibrating Feeder

Our Company

SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai, China, is a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, all kinds of crushers from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine. Powder conveying system, etc. We have devoted ourselves to the grinding field for more than 30 years. We believe only focus can be professional.

company
company

 Our Certification

With super product, well-deserved reputation and excellent service, Clirik has won lots of certificates and praise from our customers. Depend on this integrity, CLIRIK is always very popular among owners of quarry and mining. Won a number of patent certificates and honorary awards !

Certificate
Certificate

Other Product

Company hot-selling grinding mill recommendation.

HGM Series Micro Powder Grinding Mill
HGM Series Micro Powder Grinding Mill

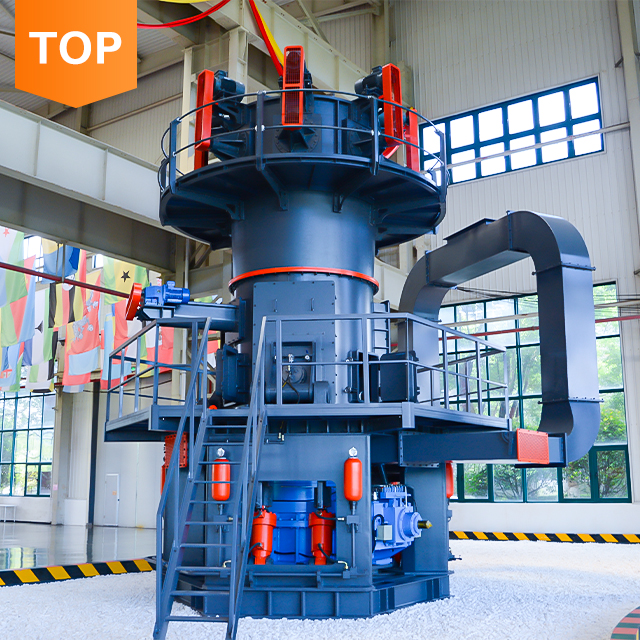

CLUM Series Ultrafine Vertical Powder Grinding Mill
CLUM Series Ultrafine Vertical Powder Grinding Mill

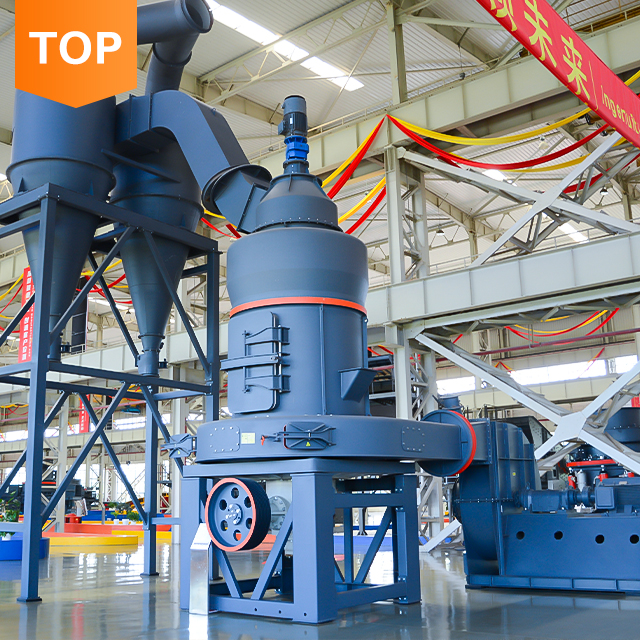

YGM Series Raymond Mill
