PFW Series Impact Crusher

PFW Series Impact Crusher

Description

Product Overview

Impact Crusher

PFW Impact Crusher

Processing ability: 50-260 t/h

Fineness: 0-200 mm

Max feeding size: 350 mm

Range of application: Mica、Calcite、 Gypsum、Fluorite、Limestone、 Soil、Clay,、Calciumcarbonate …

Application : Mining, Chemiscal, Transport and many other different areas.

Product Parameter

Model Rotor Φ×L (mm) Feed Opening (mm) Max Feeding (mm) Capacity (t/h) Power (kw) Motor Model Machine Size (mm)
PFW1214II F1150 × 1400 1100 × 1430 500 130-200 4-132 Y315M-4/132 2400 × 2310 × 2550
PFW1315II F1300 × 1500 1200 × 1530 600 180-320 4-160 Y315L2-4 /160 2700 × 2570 × 2800
PFW1318II F1300 × 1800 1200 × 1830 700 240-400 4-200 Y315L2-4 / 200 2700 × 2870 × 2800
PFW1415II F1400 × 1500 1450 × 1530 800 240-450 4-200 Y315L2-4 / 200 3000 × 2700 × 3070
PFW1214Ⅲ F1150 × 1400 570 × 1430 250 90-70 4-132 Y315M-4/132 2550 × 2310 × 2100
PFW1315Ⅲ F1300 × 1500 625 × 1530 300 180-270 4-160 Y315L1-4 / 160 2960 × 2570 × 2380
PFW1318Ⅲ F1300 × 1800 625 × 1530 300 220-300 4-200 Y315L2-4 / 200 2960 × 2870 × 2380
PFW1415Ⅲ F1400 × 1500 800× 1530 350 280-350 4-200 Y315L2-4 / 200 3120 × 2650 × 2660

Product Introduction

impact crusher

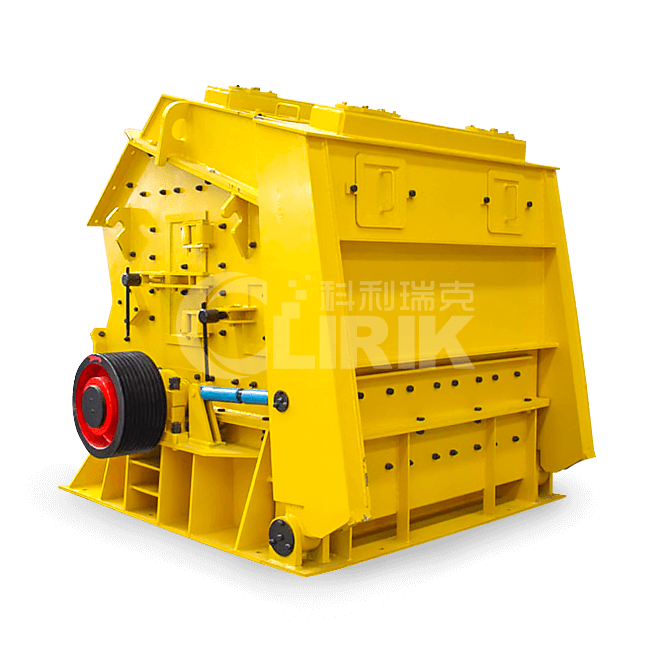

PFW Series Impact Crusher

PFW Series impact crusher is mainly used in metallurgy, mining, cement, chemical, refractory materials and ceramics and other industrial sectors, in highway construction, water conservancy engineering, construction gravel, machine sand processing and other fields widely used, very suitable for crushing all kinds of soft and hard ore coarse crushing, medium crushing, fine crushing operations.

Product Advantage

  • Simple structure, small size, light weight, large production capacity, low production cost.
  • Complete crushing function, high productivity, small wear of machine parts, high comprehensive benefit
  • Counterattack plate and plate hammer clearance adjustment is convenient, can effectively control the discharge particle size, particle shape is good.
  • Large crushing ratio, up to 40, so it can simplify the crushing process, can make three sections of crushing into two or one section of crushing, reduce the concentrator equipment cost.
  • Equipped with multi-functional hydraulic station, with hydraulic high-speed discharge clearance, counterattack plate stability vibration reduction and automatic opening of the body and other functions.
  •  PFW Series impact crusher has selective crushing effect, and the particle size of broken products is more uniform, and most of the shapes are cubic stones, which are widely used in bridge construction, high-speed road construction, wharf, airport construction and so on.
  • The PFW Series impact crusher has a high degree of automation, large crushing ratio, high production efficiency and large processing capacity. The crushed products are cubic, low needle and flake content, no internal cracks and high compressive strength.
  • The PFW Series impact crusher is easy to maintain, the wearing parts are made of high strength wear-resistant materials in China at present, with small loss and long service life, which can bring considerable economic benefits to customers
  • The continuous update and research and development of crushing equipment extend the wearing parts, long service life, easy maintenance and repair.
