TH Series Bucket Elevator

Back to lists

Solutions

Description

Table of Contents

1 Product Overview
2 Product Parameter
3 Product Introduction
4 Product Advantage
5 Why Choose Us

Product Overview

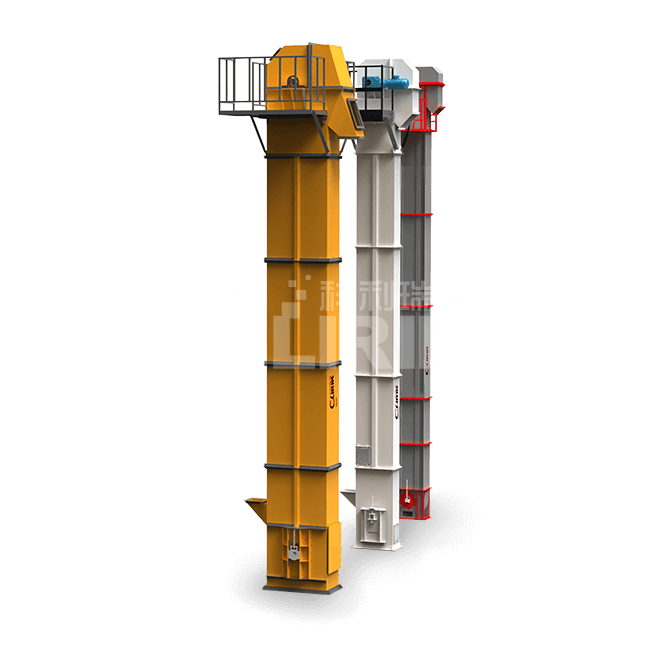

TH Series Bucket Elevator

Capacity: 15.77-210 m³/h

Max feeding size: 30-60 mm

Processing ability: 15.77-210 m³/h

Application: Ore、Coal、 Cement Camotte、 Foodstuff …

Learn More

Product Parameter

Parameter 1

Link Chain Bucket Elevator Model		TH160		TH200		TH250
Hopper Type		ZH	SH	ZH	SH	ZH	SH
Capacity/（m³/h）		15.77	24.97	17.87	28.6	31.43	48.19
Hopper	Volume (L)	1.2	1.9	1.5	2.4	3.0	4.6
	Interval (mm)	500
Chain	Round Steel Diameter*Pitch(mm)	14*50
	Single Load(KN)	≥190
Hopper Running Speed/（m/s）		1.2		1.2		1.2
Drive Sprocket Rotation Speed(r/min)		69.71		63.22		44.11
Conveying largest size(mm)		20		25		30

Parameter 2

Link Chain Bucket Elevator Model		TH315			TH400		TH500			TH630
Hopper Type		ZH	SH		ZH	SH	ZH	SH		ZH	SH
Capacity/（m³/h）		35	59		58	93	81	130		145	210
Hopper	Volume (L)	3.75	6		5.9	9	9.3	15		15	24
	Interval (mm)	512					688
Chain	Round Steel Diameter*Pitch(mm)	φ18*64					φ22*86
	Single Load(KN)	≥320					≥480
Hopper Running Speed/（m/s）		44		37.6			39.7		35.8
Conveying largest size(mm)		35		40			50		60

Product Introduction

The TH Series Bucket Elevator is a kind of vertical conveying equipment, widely used in conveying powder, granule, and a small lump of no rub or small rub (material temperature under 250 ℃). Such as coal, cement, gravel, sand, fertilizer, food, etc.

The main performance and parameters meet the JB3926-85 vertical bucket elevator. The round-link chain accords with MT36-80 mineral high strength round-link chain.

The bucket elevator consists of frame, drag part (conveyor chain), hopper, drive wheel (head wheel), feeding inlet (input inlet), and discharging outlet (output outlet).

The materials get into the bottom of the elevator through the chute, then scooped up by hoppers and elevated to the top along with the conveying chain.

After getting around the top wheel, the materials turn down into the discharging outlet, thereby conveyed to the required position. The whole process is accomplished inside the frame, preventing the dust from floating.

The drag part uses high strong high-quality alloy steel chain. The sprocket wheel with the sprocket rim composite structure has a long lifetime and is easy to replace.

The lower part using the gravity automatic devices can keep constant tension force, avoid skid or take off the chain and get certain yield ability, effectively protect lower shaft parts and other parts when hoppers get stuck accidentally.

Product Advantage

Benefits Of TH Series Bucket Elevator :

High capacity. The capacity is 1 times higher than the HL bucket elevator in the same bucket width.

Adopt packaged sprocket, consisted of wheel body, sprocket rim which are connected by high strength bolt. It is convenient to unscrew the bolt and change the sprocket rim after the sprocket wheel wears to a certain degree, which can save material, reduce maintenance costs.

The heavy-duty lever tensioning device makes automatic tension be realized. Once installed, no need to adjust, and it can keep constant tension, ensure the normal operation and avoid the skid or take off the chain.

Stable lifting height, reliable operation, low noise, easy maintenance.

The conveying capacity of the improved model is 30% higher than normal models.

The drag part is high strength low alloy steel chain whose life is long. After proper heat treatment, the steel chain has very high tensile strength and wears resistance.
